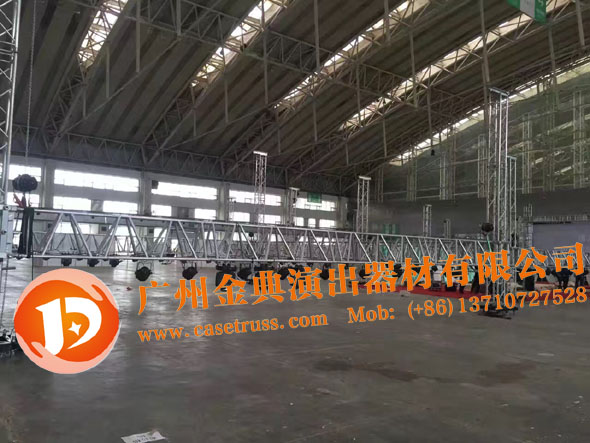

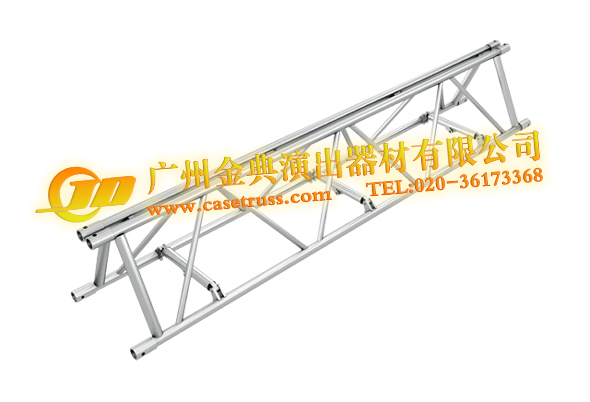

With a spanning capacity of up to 24m, F57 Truss can considerably reduce the number of pick-up points or a number of chain hoists required to lift the truss to trim height.

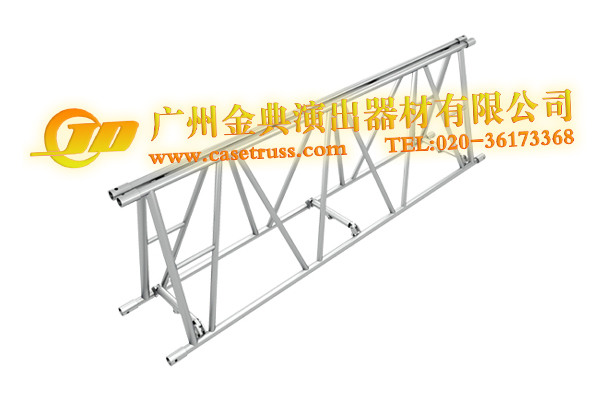

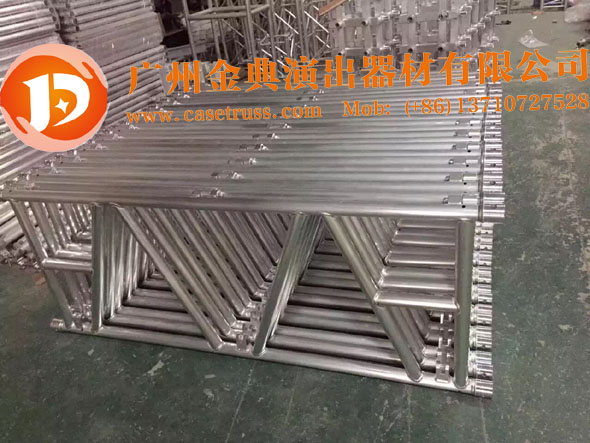

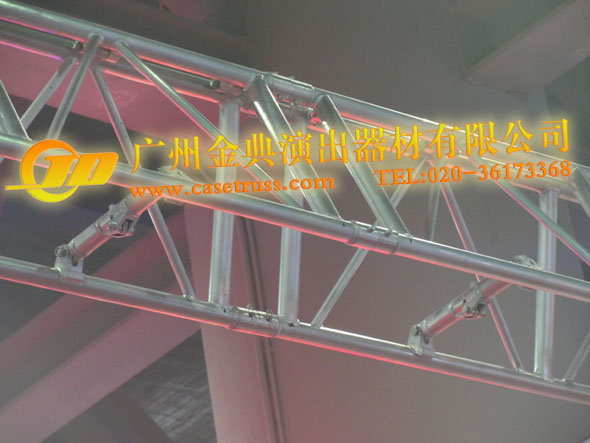

The dimensions of the F52 Truss fixed in an open position is 570mmW x 530mmH, whilst the folded dimensions are only 147mmW x 580mmH OD. Folding Truss is held in the open triangular position via folding horizontal braces and is suitable for vertical loads only as these have extremely limited lateral force load-bearing capacity.
Advantages:
1. Fast and easy to assemble
2. Very high loading capacity
3. Low transport volume
4. Optimum strength
Specifications:
| Chord Material | EN AW 6082 T6 |
| Endsocketmaterial | EN AW 6082 T6 |
| Bracing material | EN AW 6082 T6 |
| Conical spigot material | EN AW 6082 T6 |
| Chord dimension | 50mm x 3mm |
| Bracing dimensions | 25mm x 3mm |
| Connectors included | 4 x conical spigots, pins & R-clips |
| Production type | Linear |
| Loading capacity | 500kg |
| Max. Span | 24M |
This folding truss is fast and easy to assemble. The folding truss offers a strong truss with a very high loading capacity; It has a 4-sided webbing, making it strong in a vertical and horizontal plane. The folding truss offers low transport volume combined with ultimate strength. Folding truss is not available as circular truss.
