Classification：Tent
Hot Line：+86 139 2427 2775
Aluminum Frame’s unique appearance make it can used in many occasion: home garden, exhibition, trade show, event, small party. Whatever install one pagoda tent alone or assemble all together with rain gutter,has multiple options available, such as glass walls, glass doors, floor panels, and fabric interiors. it has different charming

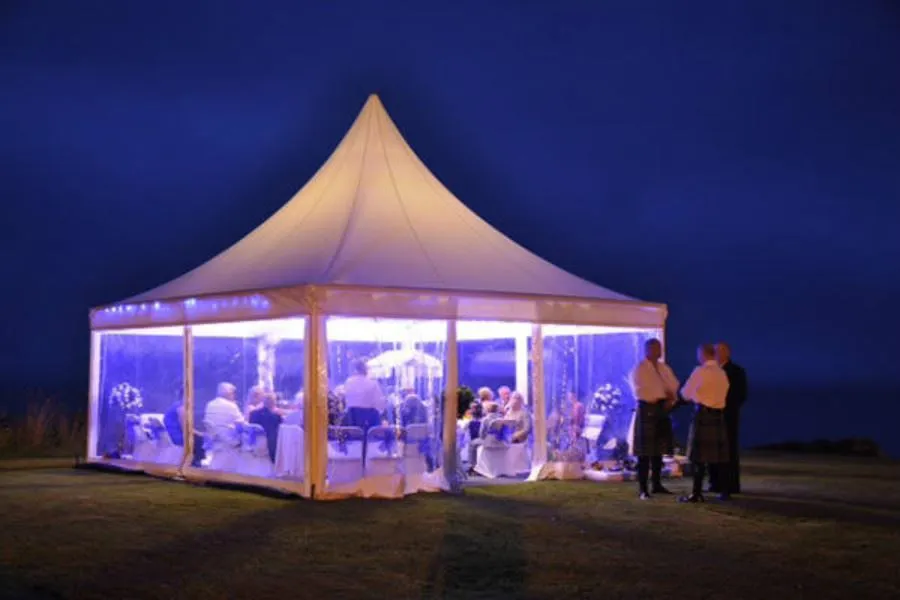

In addition to being used alone at the wedding venue, the spire can also be connected to a larger area with a drainage channel to create a unique shape that is more exciting at the wedding scene
.
Description
Frame part
1) The Pagoda Tent Aluminum Frame main parts are made of aluminum alloy and the spare parts are made of steel.
2) All aluminum components are technically anodized and all steel parts are well hot-dip galvanized.
Cover Part
1) The roof and sidewall fabric cover are made of double coated PVC.
2) The fabric is waterproof and UV resistant.
3) The fabric is flame retardant to DIN4102, M2 and Grade B1.
4) The weight of fabric is from 650g/sqm to 850g/sqm
|
Name |
Pagoda Tent Aluminum Frame |
|
Frame |
Hard pressed anodized aluminum alloy 6061/T6 |
|
Roof cover |
850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof |
|
Sidewall |
650g/sqm or 850g/sqm PVC; Glass Panel sidewall, ABS sidewall |
|
CONNECTION |
Hot Dip Galvanized Steel Connector, Aluminum roof connection |
SPECIFICATION:
|
Dimension |
Side height |
Peak height |
Main frame |
Wind load |
Snow load |
|
3m x 3m |
2.5m |
4.2m |
84x48xT3mm |
80km/h |
0.3KN/sqm |
|
4m x 4m |
2.5m |
4.8m |
84x48xT3mm |
80km/h |
0.3KN/sqm |
|
5m x 5m |
2.5m |
5.2m |
84x48xT3mm |
80km/h |
0.3KN/sqm |
|
6m x 6m |
2.5m |
5.8m |
84x48xT3mm |
80km/h |
0.3KN/sqm |
|
8m x 8m |
2.5m |
5.4m |
122x68xT3mm |
100km/h |
0.3KN/sqm |
|
10m x 10m |
2.6m |
6.4m |
122x68xT3mm |
100km/h |
0.3KN/sqm |
|
15m x 15m |
3m |
8.1m |
122x68xT3mm |
100km/h |
0.3KN/sqm |
Wind Load
Cover Part Specification:
1) The roof and sidewall fabric cover are made of double coated PVC.
2) The fabric is waterproof and UV resistant.
3) The fabric is flame retardant to DIN4102, M2 and Grade B1.
4) The weight of fabric is from 650g/sqm to 850g/sqm.
Our tent structure is well designed for both permanent use and renting. It can withstand 100 – 120 km / h Wind Speed.
6 degree Typhoon: 40km//h
12 degree Typhoon.: 120km/h
Snow Load
Our tent roof slope is well designed for snow and rain to slip off quickly. The roof fabric has firstly PVC coated, then lacquered with Vinyl for more smooth surface to let snow and rain slip off. Snow load exceed 0.3KN/sqm
Quality Control :
If you can not find what you want here, kindly contact us by email or online whatsapp. We will offer you more case for your reference.
