Aluminium Canopy Tent for Event
Aluminium Canopy Tent for event (LS series, A frame) also can canopy tent can be widely used as the wedding tent, party tent, exhibition tent, conference tent, different kinds of festivals tent, hajj tent, corporate events tent, sports tent, & temporary, semi-permanent or permanent building purpose etc.
Outdoor Function Catering Tent, or The clear top party clear span of polygon top is 10m, 12m, 15m, 18m, 20m, 25m, 30m, 40m, and 50m. The standard side height of 10-40m span width tents is 4m and 5m for 50m and 60m. Bay distance is 5m, the length can be increased and decreased by 5m bay without limit. It can also be customized for clients’ special requirements.
The design for clear top party is with the advanced idea and the structure is quite firm. It is designed for meeting the requirements of bigger interior space and elegant polygonal appearance. The features of polygon top clear top party : modular system, easy to be assembled and dismantled, durable, wind resistance can reach 100-120km/hour, flame retardant with relevant certificates. It is suitable for large-scale concerts, exhibitions, big parties, sports events and so on.
SPECIFICATION:
|
Span Width |
Eave Height |
Ridge Height |
Bay Distance |
Main Profile |
|
10M |
4M |
7.16M |
5M |
204X120X4MM |
|
12M |
4M |
7.4M |
5M |
204X120X4MM |
|
15M |
4M |
8.75M |
5M |
204X120X4MM |
|
18M |
4M |
9.15M |
5M |
204X120X4MM |
|
20M |
4M |
9.42M |
5M |
204X120X4MM |
|
25M |
4M |
11.72M |
5M |
256X121X5MM |
|
30M |
4M |
13.2M |
5M |
256X121X5MM |
|
40M |
4M |
15.4M |
5M |
300X120X5MM |
|
50M |
4M |
16M |
5M |
300X120X5MM |
|
60M |
4M |
17M |
5M |
400X120X7MM |
The Data-sheet:
Description
1) Materials of aluminium canopy tent for event:
Main frame : Aluminum material frame 6061-T6
Fabric: Double PVC coated polyester fabric, 650-850g/sq. m, water proof, UV resistance, anti-mildew, self-cleaning, fire retardant according to standard NFPA701 & DIN4102 B1/M2
2) Life span:
Life span of fabric(cover & sidewalls): 8-10years;
Life span of aluminum frame: 20-30years
3）Structure safety parameters:
Wind load: 100km/h (0.5kn/M2)
Snow load: 25kg/sq.m
4)Color available:
White, red, yellow, blue, green, black, gray, transparent etc
5)Optional Accessories:

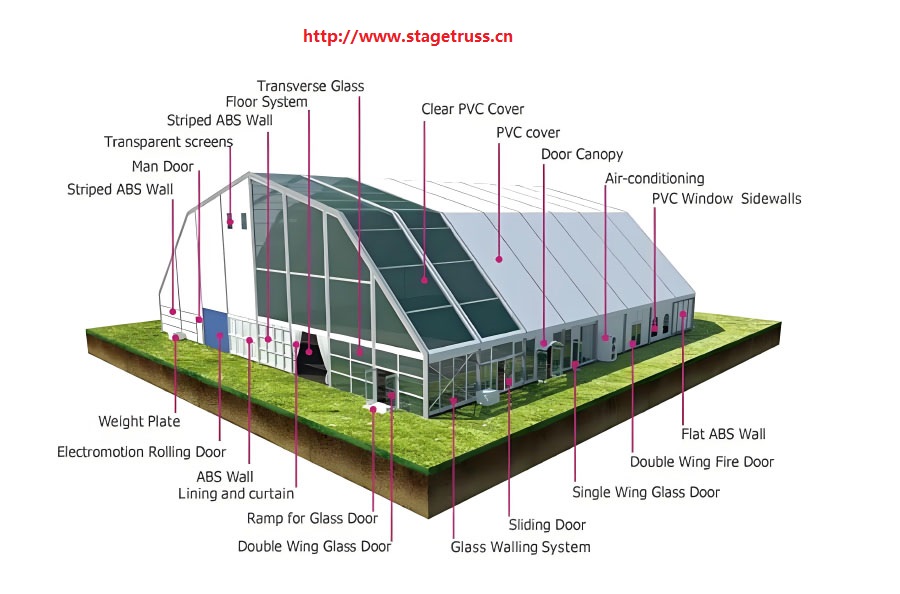

Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, Sandwich walls, auto-rolling door, decoration lining, flooring system, clear PVC windows sidewalls, transport rack for the glass door & walls, ramp etc; chairs , tables, & other furniture for the parties are also provided for your option.
6)Quality Control of the Aluminium Canopy Tent for event:
Other options:
With the growth of international sporting events that holding in some major cities, the audience began to know more about the sport event tent, in fact, many tents with nearly the same appearance, but the internal details are totally different. However, it is precisely these different details determine the event success for failure. The details affect the overall structural performance and safety, bad details resulting in the service of entire event greatly reduced.
Aluminium canopy tent for event not only adheres to the use of high-quality aluminum and tarpaulin to make the structure of sport of sports event tent more secure and more beautiful but also constantly improve the design to reduce the time of assembly and dismantling for better user experience. We also focus on creating various types of new designs to meet the different needs of customers.
Welcome to contact us for more information about us or email us for an inquiry. More information please contact us!
