Description
The advantages of

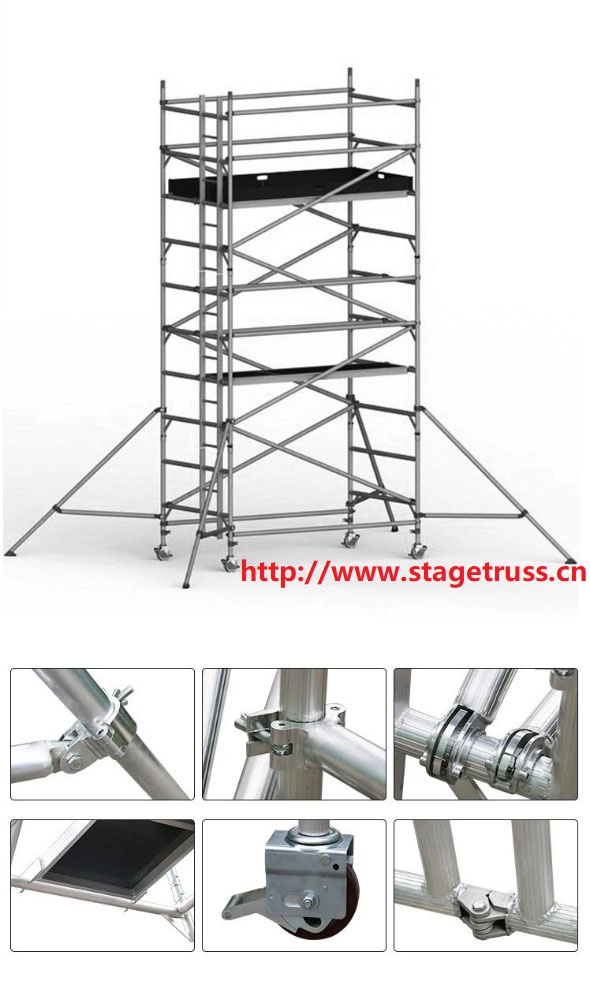

The advantages of Aluminium Mobile Scaffold
– Light weight but high strength
– Anti-corrosion
– Anti-rust
– Easy assembly and dismantlement
– Safe and firm structure
– Easy to transport and store
– Adjustable to different working heights
Composition of a complete set scaffolding: 5Rung Frame, 5Rung Ladder Frame,Horizontal Brace, Diagonal Brace, Stabilizer, Joint Pin/Spigot, Handrail, Platform/Trapdoor Platform/Toe Board, Caster Wheel.
General Specifications of aluminum scaffolding tower:
Double Width(1350mm): (W)1350X(L)2000/2500/3000
2m/4m/6m/8m/10m/12m height platform
Single Width(750mm): (W)750X(L)2000/2500/3000
2m/4m/6m/8m/10m/12m height platform
|
Safety standard |
European safety standards HD10042 |
|
Length of the frame |
2M |
|
Width of the frame |
1.35M or 0.72M |
|
Thickness of the tube |
50mm x 2mm |
|
Adjustable legs |
6ft or 8ft |
|
Adjustable range of the legs |
1-22cm |
|
Degree of the stair |
45 degree, 75 degree or 90 degree |
|
Connection hook |
Connected by different color |
|
Connection style |
Automatic |
|
Welding style |
Aluminum welding |
|
Platform |
Square tube frame with 18mm plywood |
|
Platform loading capacity |
272kg |
|
Total loading capacity |
900kg |
|
Skirting board width |
15-20cm |
|
Surface of the skirting board |
Anti-skid , fire prevention and waterproof |
Aluminium Mobile Scaffold completely measure up the safety standards of Europe HD10042, construction scope 2m to 4m height. Advantages include flexible combination, quick installation and disassembly, save cost in transportation and storage, light weight, maintain is simple etc.
APPLICATION:
Installation steps of the Aluminum Rolling Scaffold:
ATTENTION:
1.The adjustable legs should keep it clean and put some lubricants on it.
2.When move the aluminum scaffolding, should pay attention to the object in the sky. Especially the electric wire.
3.Nothing can be keep on the platform when moving the aluminum scaffolding.
4.Person can not stand on the platform when moving the aluminum scaffolding.
5.If the height of the stage scaffolding is more than 7m, outriggers have to add.
